Contactor-switched APFC suits slowly changing reactive demand, while thyristor-switched stages address faster repetitive changes when controlled switching, thermal design and response evidence justify the added complexity.
- Use measured load-change speed and switching frequency as the first discriminator.
- Thyristor switching removes mechanical contact wear but introduces semiconductor thermal and protection duties.
- Neither switching method corrects harmonics unless the complete system is designed for that separate objective.
Start with the reactive-load time scale
A slowly varying demand can tolerate deliberate contactor delays, while a repetitive fast cycle may require controlled semiconductor switching or another dynamic device.
Plot the rate and magnitude of kVAr changes during real operating cycles. Contactors are commonly applied where seconds-scale switching and a finite number of mechanical operations are acceptable. Thyristor stages can respond more quickly without mechanical contact bounce, subject to the controller and branch design.
Do not infer required response from the machine name alone. Two welding lines, presses or cranes can have different duty cycles, simultaneous operation and source stiffness. Measure at the intended correction boundary.
Evidence basis[1] International Electrotechnical Commission[2] International Electrotechnical Commission
Start with the reactive-load time scale
A slowly varying demand can tolerate deliberate contactor delays, while a repetitive fast cycle may require controlled semiconductor switching or another dynamic device.
Final ratings, protection, earthing, settings and interlocks follow approved project engineering.

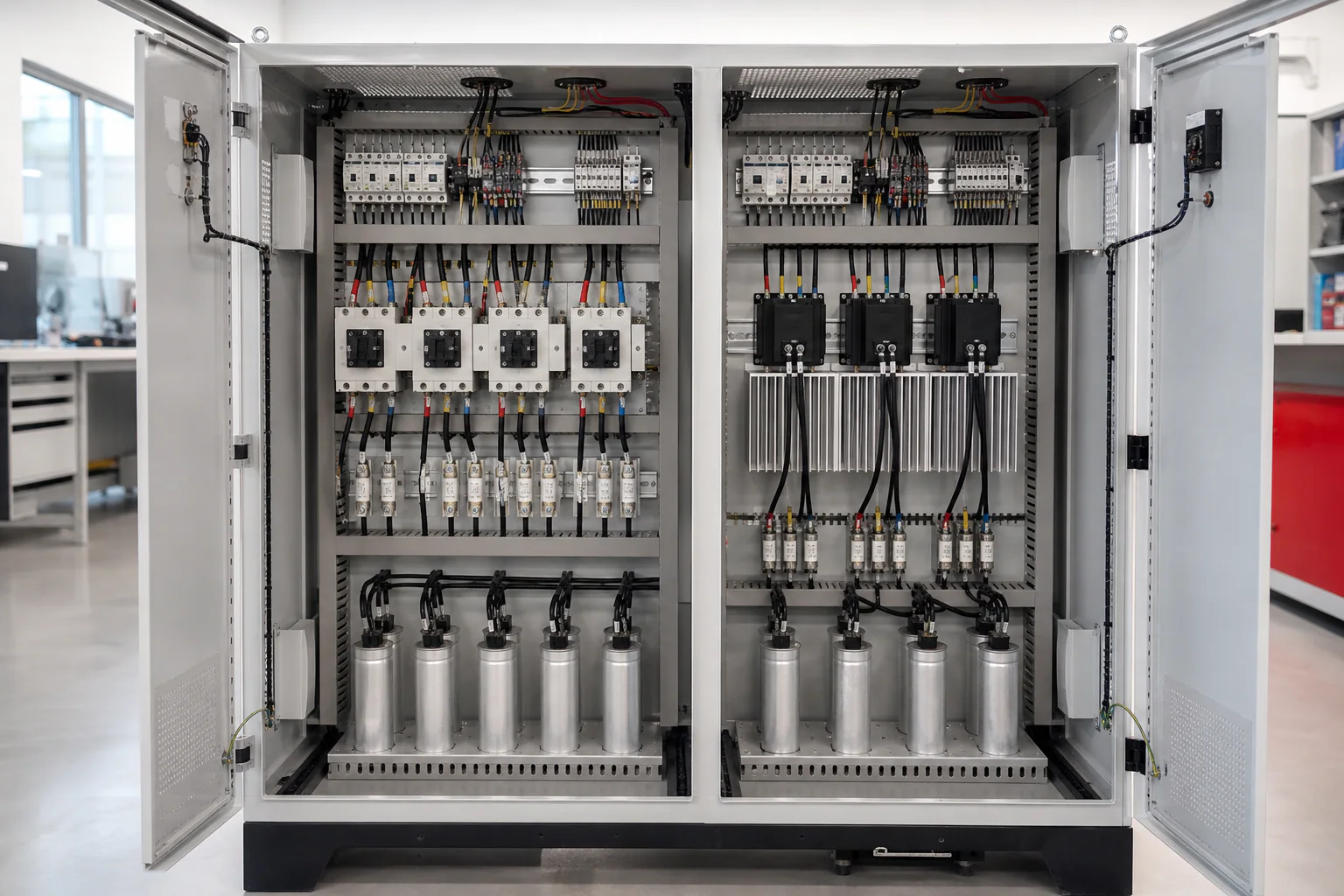

Open full-size SVGCompare the switching and thermal duty
The contactor manages transient making and mechanical life; the thyristor manages controlled conduction, heat and semiconductor fault behaviour.
A capacitor contactor needs suitable making duty and an inrush-control arrangement where specified. A thyristor module uses controlled switching around the network and capacitor voltage relationship to reduce transient stress, but its losses, heat sink, ventilation, branch protection and failed-short or failed-open response require explicit design.
Both arrangements still need discharge or voltage-state management, capacitor protection and an approved minimum time between incompatible commands.
Evidence basis[1] International Electrotechnical Commission[2] International Electrotechnical Commission[3] Eaton
| Decision factor | Contactor-switched | Thyristor-switched |
|---|---|---|
| Typical load change | Slow or moderate | Rapid and repetitive |
| Primary wear or loss | Mechanical contacts | Semiconductor heat |
| Switching control | Timed mechanical closing | Controlled electronic conduction |
| Maintenance focus | Contacts and mechanism | Cooling, modules and protection |
Compare the switching and thermal duty
The contactor manages transient making and mechanical life; the thyristor manages controlled conduction, heat and semiconductor fault behaviour.
Final ratings, protection, earthing, settings and interlocks follow approved project engineering.
Open full-size SVGDefine the evidence that proves the choice
The accepted technology should meet an agreed response and power-factor objective without abnormal temperature, switching or low-load over-correction.
Define where power factor and kVAr will be measured, the operating states included, the observation window and how blocked stages are handled. Record thermal conditions and controller event history alongside the electrical trend.
If the measured problem is harmonic current rather than rapidly changing displacement reactive power, an AHF or combined strategy may be the relevant branch of the decision. A fast capacitor bank is not a substitute for diagnosis.
Evidence basis[1] International Electrotechnical Commission[4] IEEE Standards Association
Define the evidence that proves the choice
The accepted technology should meet an agreed response and power-factor objective without abnormal temperature, switching or low-load over-correction.
Final ratings, protection, earthing, settings and interlocks follow approved project engineering.
Open full-size SVGInformation that makes the next review more useful.
- 01
Provide time-based kVAr demand with a sampling interval capable of showing the fastest repeated change.
- 02
Record the number of expected correction operations per hour and the required response window.
- 03
Identify harmonics, detuning requirements and capacitor voltage duty.
- 04
Define ambient temperature, ventilation and semiconductor heat-rejection constraints.
- 05
State maintenance access, spare strategy and acceptable outage for a failed stage.
- 06
Confirm controller logic, discharge or pre-charge method and stage interlocks.
- 07
Define how performance will be measured at the selected electrical boundary.
Standards and technical references.
Links identify the source and scope; access to a complete standard may require purchase or organisational access.
- 01IEC 61921:2017 — Low-voltage power-factor correction banksInternational Electrotechnical Commission
- 02IEC 60831-1:2014 — Low-voltage self-healing shunt power capacitorsInternational Electrotechnical Commission
- 03Application of electromechanical contactors for power-factor correctionEaton
- 04IEEE 519-2022 — Harmonic control in electric power systemsIEEE Standards Association
Questions engineers and project teams ask.
Is thyristor-switched APFC always better than contactor APFC?
No. Thyristor switching is justified by rapid repetitive demand and the required response. Slower loads can be served effectively by a correctly engineered contactor bank with lower electronic complexity.
Does thyristor APFC remove current harmonics?
Not by itself. It controls reactive capacitor stages quickly. Harmonic mitigation is a separate measured objective that may require detuning, an active harmonic filter or another engineered response.
